Advanced Sensor Network For Monitoring & Controlling Poultry Farms in Southern India

Our project offers real-time monitoring and control of poultry farms in Southern India, featuring dynamic dashboards, in-depth analytics, and offline functionality for uninterrupted operation.


Key Features:

  • Dynamic Dashboard Display
  • In-Depth Analytics
  • Dual Monitoring Modes
  • Multisensory Data Collection
  • Offline Data Storage
  • High-Frequency Data Sampling
  • Tailored for Southern India
  • Scalability and Customization
  • Remote Monitoring and Control

Components

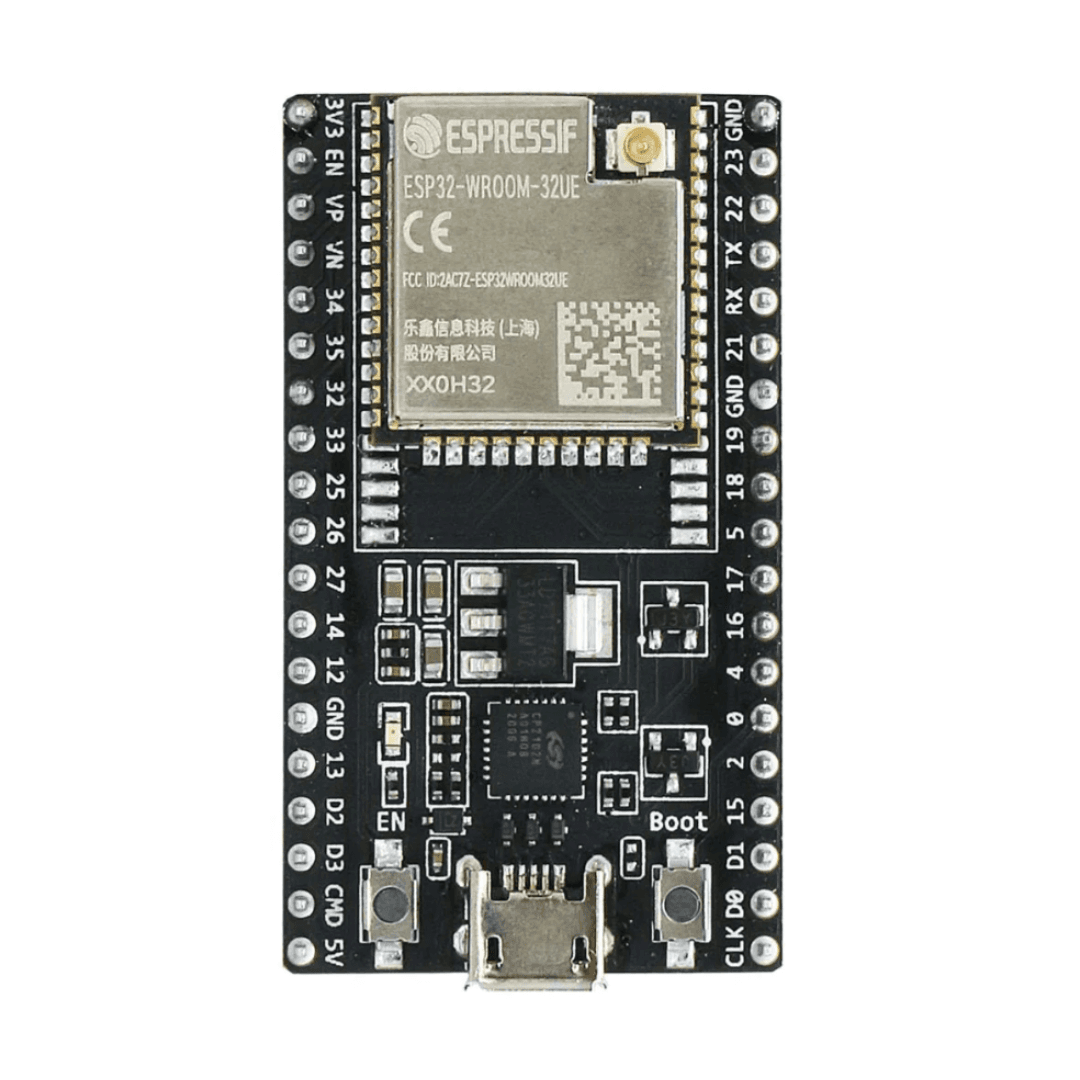

Node MCU ESP32

Sensor

Name:ESP32

Microcontroller:Tensilica Xtensa LX6 dual-core processor

Operating Frequency:Up to 240 MHz

Wi-Fi: 802.11 b/g/n (2.4 GHz) and Bluetooth v4.2 BR/EDR and BLE (Bluetooth Low Energy)

Flash Memory:4 MB

RAM:520 KB SRAM

GPIO:Up to 36 GPIO pins (depending on the variant)

Analog Inputs:Up to 18 ADC channels

Digital Interfaces:SPI, I2C, UART, I2S

Operating Voltage:3.3V

Power Consumption:Varies depending on usage, typically:

  • Active mode: 80 mA (Wi-Fi), 7 mA (Bluetooth), 150 µA (RTC)
  • Deep sleep mode: As low as 10 µA

Sensors

MQ135
MQ135
  • Detects: Ammonia, sulfide, benzene vapors, smoke, CO2
  • Range: 10-1,000 ppm (parts per million)
  • Accuracy: ±20% (for CO2)
  • Operating Voltage: 5V
  • Power Consumption: ~0.15A

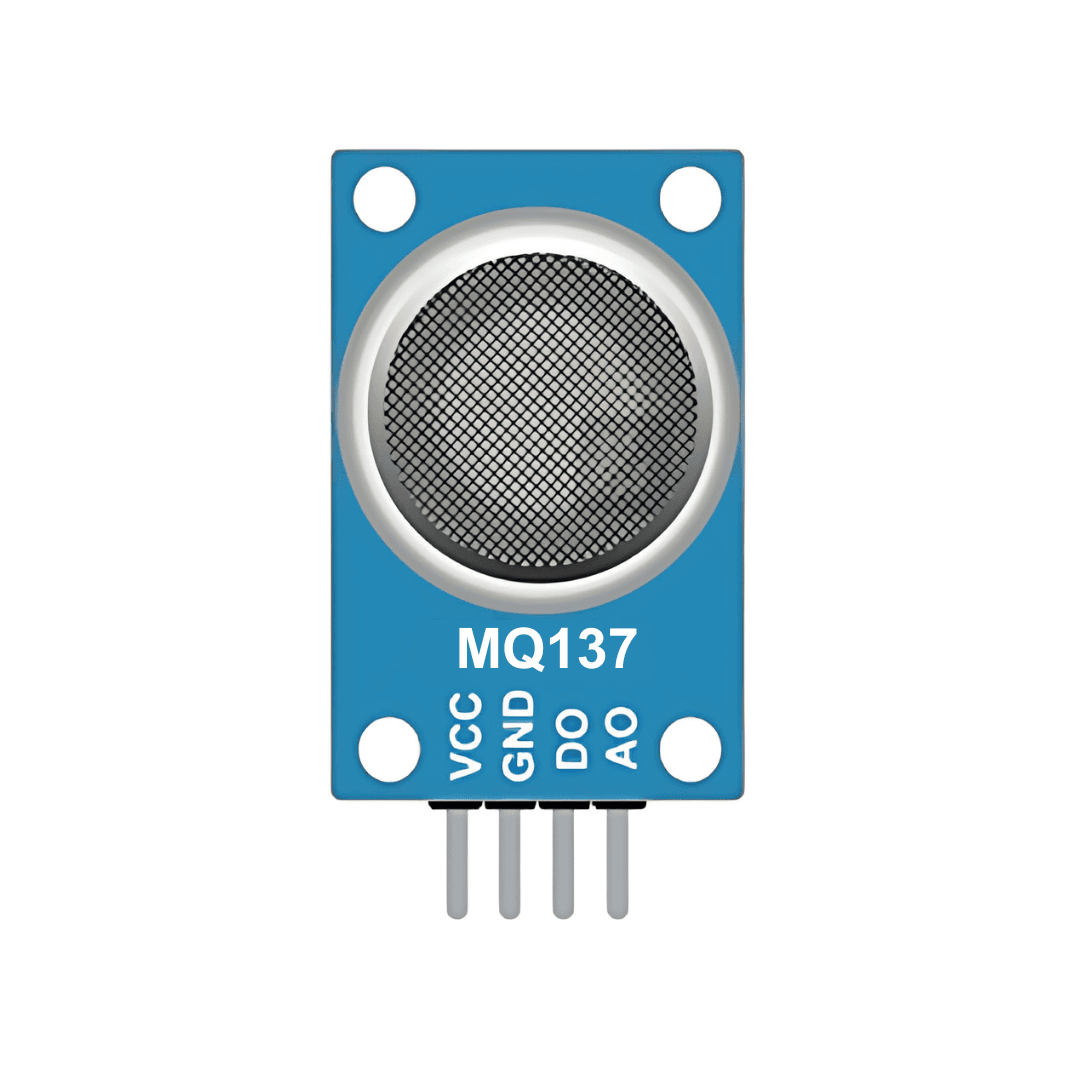

MQ137
MQ137
  • Detects: Ammonia (NH3)
  • Range: 5-500 ppm (parts per million)
  • Accuracy: ±10% (for NH3)
  • Operating Voltage: 5V
  • Power Consumption: ~0.15A

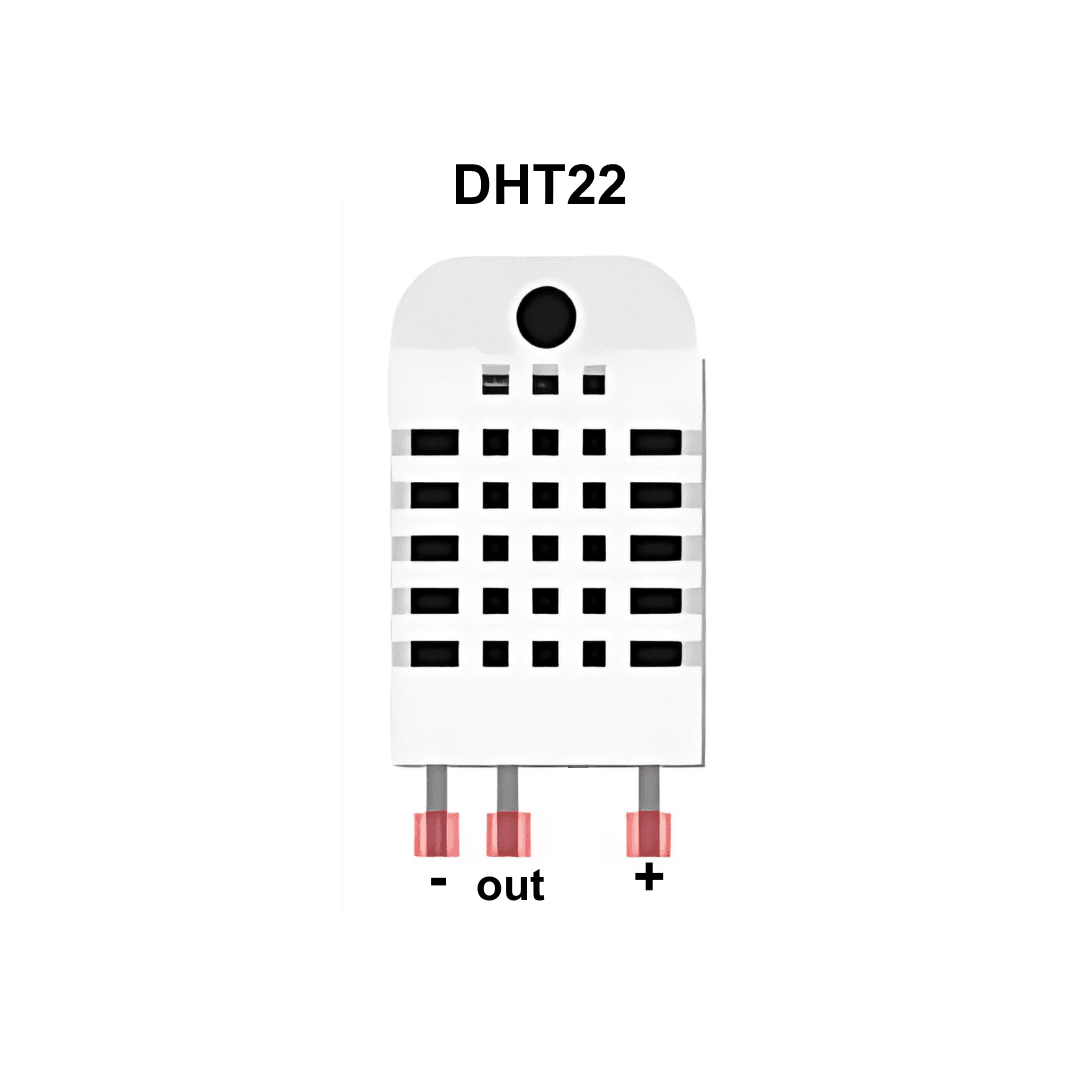

DHT22
DHT22
  • Detects: Temperature and humidity
  • Range: -40°C to 80°C (temperature) | 0-100% RH (humidity)
  • Accuracy: ±0.5°C (for temperature) | ±2% RH (for humidity)
  • Operating Voltage: 3.3V - 6V
  • Power Consumption: ~2.5mA
